N400F

Driven type: Engine driven

Compressor；Jap SD5S14(138cc)

Application:7-12m3 (-18℃ ) truck Body

Function:Fresh/Frozen

Send Email Get Price Whatsapp
Features Technical Data Application Related Products Inquiry

Features

  • This is a split system which consists of condenser with one fan and evaporator with blower separately.

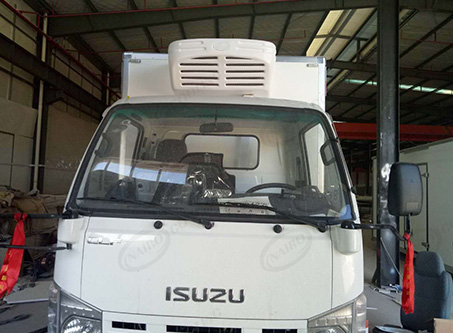

  • Condenser is front mounted of truck body
  • The compressor is directly driven by truck’s engine.
  • Adopt High Quality Copper Tube and Aluminium Fin to Get High Cooling, Reliable Performance and Long Life.
  • Suitable truck body is about 7-12M3 (3.2-3.5meters length).
  • This system exclusively designed for fresh or Frozen applications on small truck body.

Technical Data

Model N400F
 Driven Type Engine Driven
 Voltage DC12v / DC24V
 Compressor Jap SD5S14(138cc)
 Controller Digital, In Cab
Cooling Capacity -18℃ -2000 W/6824BTU
0℃ -2990W/10200BTU
Volume of Body 7-12m3 (-18℃ )
Refrigerant HFC-404A,1.2-1.4kg
Condenser Fan No. 2 Fan
Dimension 780*446*382mm
Evaporator Blower No. 2 Blower
Air Flow 2900m3/h
Dimension 857*570*153mm

Application
