N600F

Driven type: Engine driven

Compressor:Valeo TM16 (162cc)

Application:16-18M3truck Body

Function:Fresh/Frozen

Send Email Get Price Whatsapp
Features Technical Data Application Related Products Inquiry

Features

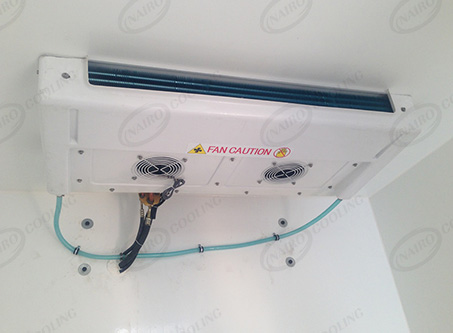

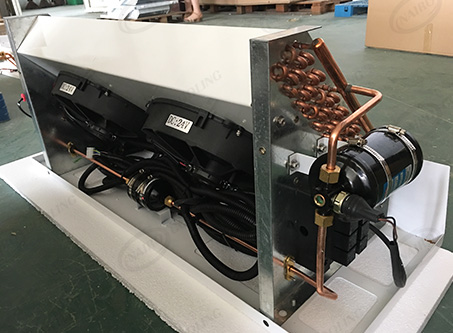

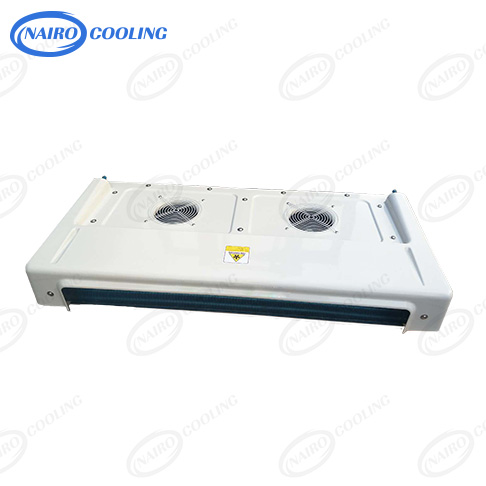

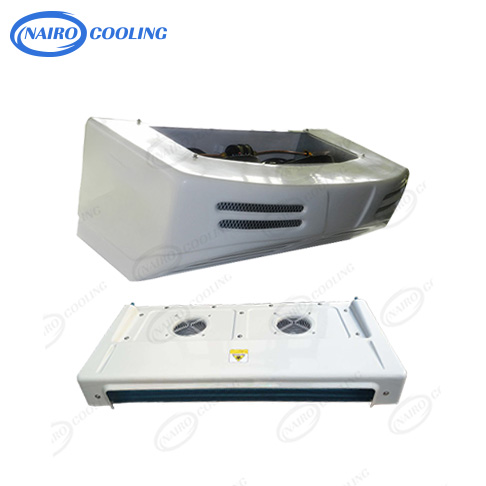

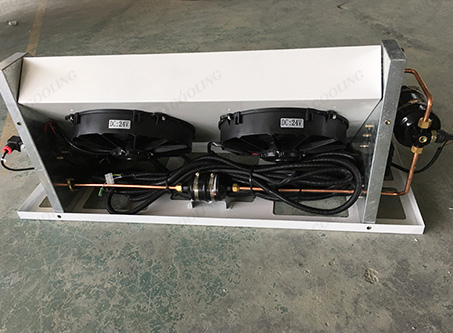

  • This is a split system which consists of condenser with one fan and evaporator with blower separately.

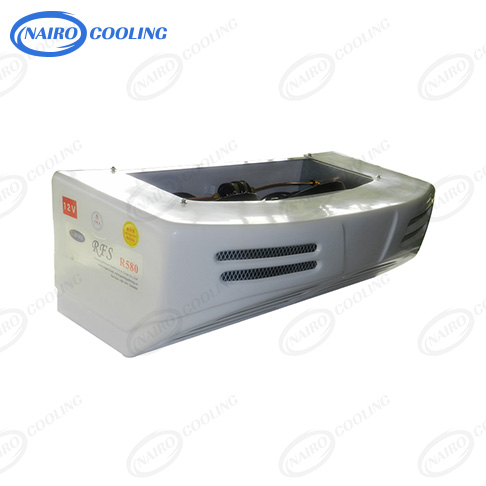

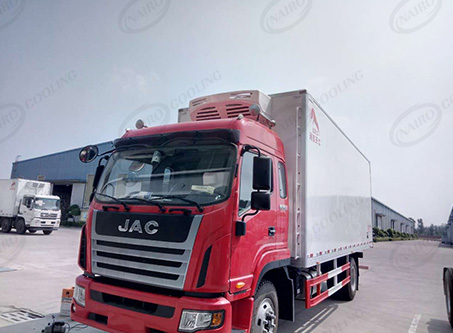

  • Condenser is front mounted of truck body
  • The compressor is directly driven by truck’s engine.

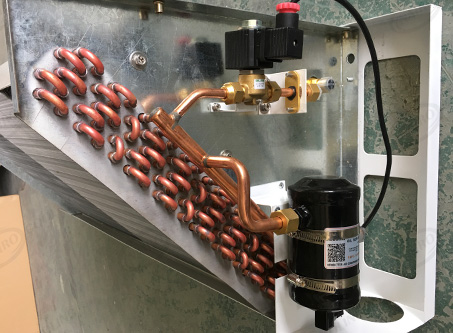

  • Adopt High Quality Copper Tube and Aluminium Fin to Get High Cooling, Reliable Performance and Long Life.
  • Suitable truck body is about 16-18M3 (4.2-4.5meters length).
  • This system exclusively designed for fresh applications on small truck body.

Technical Data

Model N600F
Driven Type Engine Driven
Voltage DC12v / DC24V
Compressor Valeo TM16 (162cc)
Controller Digital, In Cab
Cooling Capacity -18℃ -2990 W/10200BTU
  0℃ -6700W/22860BTU
Volume of Container 16-18m3 (-18℃ )
Refrigerant HFC-404A,2.6-2.8kg
Condenser Fan No. 2 Fan
Dimension 1178*585*403mm

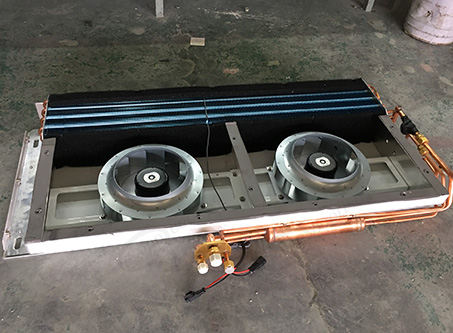

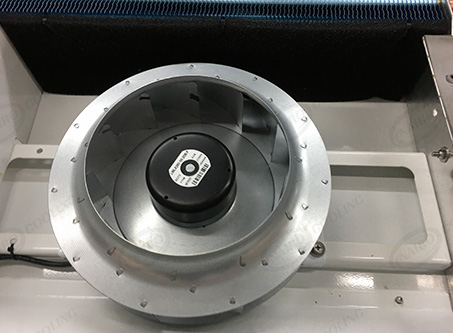

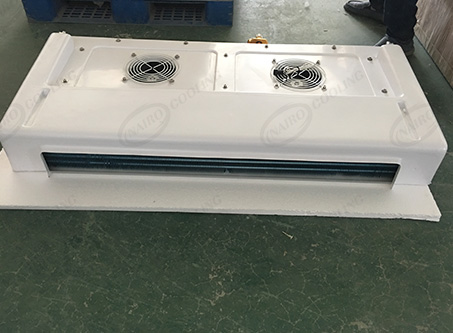

Evaporator Blower No. 2 Blower
Air Flow 3100m3/h
Dimension 1255*585*190mm
