N980F

Driven type: Engine driven

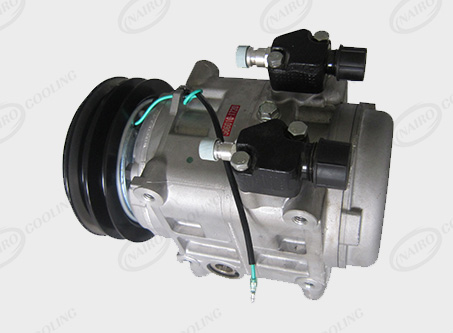

Compressor:Valeo TM31 (313cc)

Application:28-32M3truck Body

Function:Fresh/Frozen

Send Email Get Price Whatsapp
Features Technical Data Application Related Products Inquiry

Features

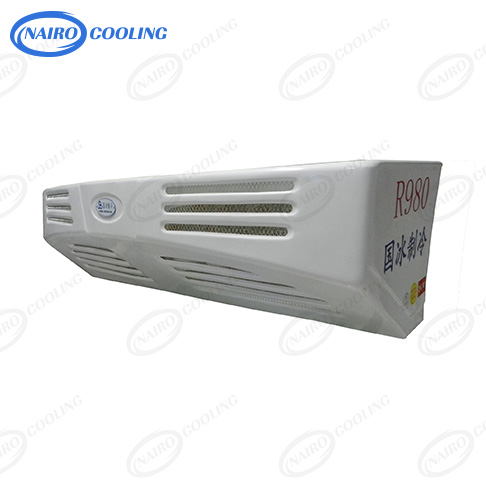

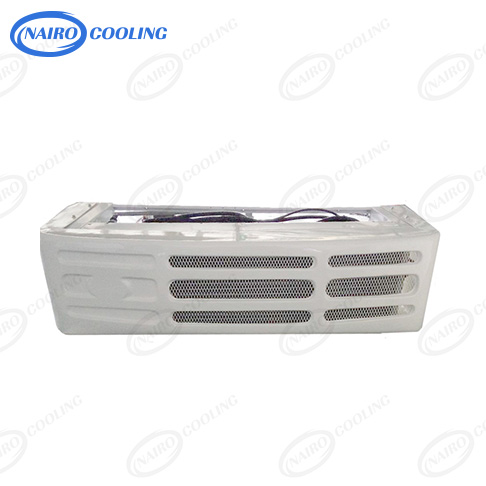

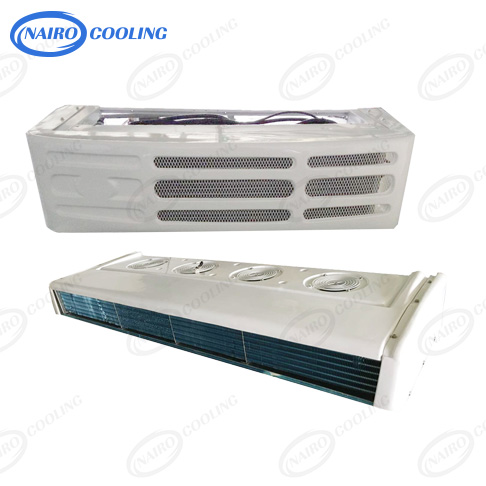

  • This is a split system which consists of condenser with one fan and evaporator with blower separately.

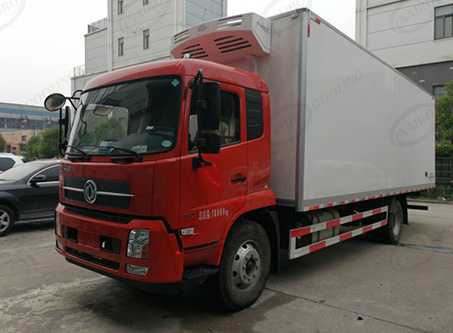

  • Condenser is front mounted of truck body
  • The compressor is directly driven by truck’s engine.
  • Adopt High Quality Copper Tube and Aluminium Fin to Get High Cooling, Reliable Performance and Long Life.
  • Suitable truck body is about 28-32M3 (7.2-7.5meters length).
  • This system exclusively designed for fresh and frozen applications on big truck body.

Technical Data

Model N980F
 Driven Type Engine Driven
 Voltage DC12v / DC24V
 Compressor Valeo TM31 (313cc)
 Controller Digital, In Cab
   Cooling Capacity -18℃ -7070 W/23950BTU
  0℃ -10140/34600BTU
   Volume of Container 25-27m3 (-18℃ )
    Refrigerant HFC-404A,5.7-5.9kg

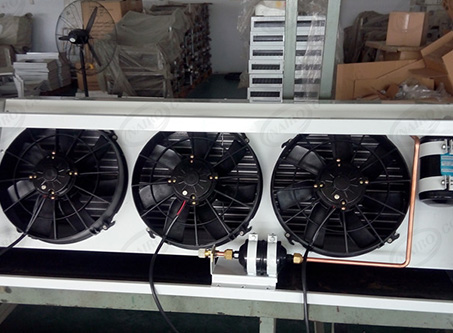

Condenser Fan No. 3 Fan
Dimension 1565*602*420mm

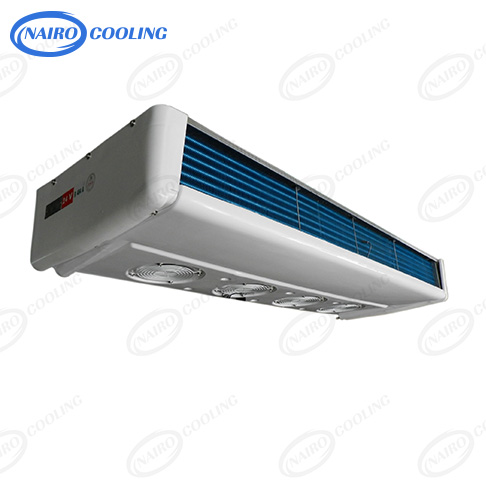

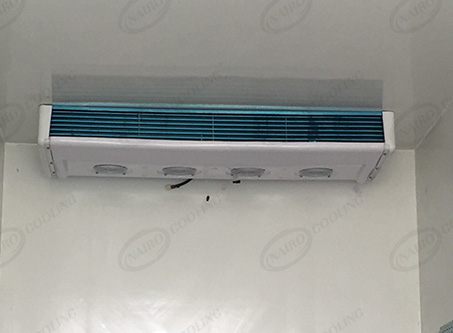

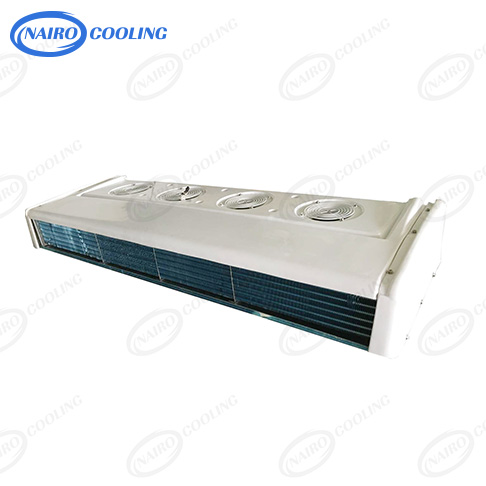

Evaporator Blower No. 4Blower
Air Flow 5200m3/h
Dimension 1923*744*260mm
